Trino源码学习-查询提交

上篇介绍了Trino的启动流程,这篇我们来学习下查询提交的流程。

从客户端提交开始

通常来说,向Trino提交查询可以通过两种方式: JDBC或者是Trino-Cli。本节将对Trino-Cli进行分析。

首先Trino-Cli是一个可执行jar包,因此我们可以从pom文件中找到main-class的定义:io.trino.cli.Trino。这也就是Trino-Cli的启动入口。下面是客户端提交查询的时序图:

sequenceDiagram
    Trino->>Console: main入口 call Console
    Console->>Console:run
    Console->>QueryRunner: create
    QueryRunner-->>Console: return QueryRunner
    Console->>Console: runConsole
    loop until客户端终止
    Console->>Console: 解析输入,拆分为多条命令和语句
    loop every Statement
    Console->>Console: process
    Console->>+QueryPreprocessor:preprocessQuery
    QueryPreprocessor-->>Console: return final sql
    Console->>+QueryRunner: startQuery
    QueryRunner->>+StatementClientV1: new StatementClient
    StatementClientV1->>StatementClientV1: buildQueryRequest
    StatementClientV1->>+JsonResponse: execute
    JsonResponse->>+OkHttpClient: execute Request
    OkHttpClient->>-JsonResponse: return HttpResponse
    JsonResponse->>-StatementClientV1: return JsonResponse
    StatementClientV1->>StatementClientV1: processResponse
    StatementClientV1->>-QueryRunner:
    QueryRunner-->>-Console: return Query
    Console->>Query: renderOutput
    alt 展示进度条
      Query->>StatusPrinter: new StatusPrinter
      StatusPrinter->> StatusPrinter: processInitialStatusUpdates
      loop 查询未完成
        StatusPrinter->>StatementClientV1: advance 轮询结果
      end
      StatementClientV1-->>Query: 返回结果
    else
      Query->>Query: processInitialStatusUpdates
      loop 查询未完成
        Query->>StatementClientV1: advance 轮询结果
      end
      StatementClientV1-->>Query: 返回结果
    end
    end
    end

结合代码可以发现,客户端提交查询分为两个步骤:

  1. 初次提交查询。客户端将查询构建成post请求,通过StatementClientV1发送到Coordinator的/v1/statement接口。
  2. 轮询查询状态直至查询结束。如果服务端查询没有结束,会进行轮询(processInitialStatusUpdates),轮询通过StatementClientV1的advance方法获取结果。advance每次会获取上次返回值中的nextUri,向该地址发送GET请求。

服务端Restful入口

前面说了客户端会将查询提交到Coordinator的/v1/statement接口。

每个Coordinator启动时,会加载CoordinatorModule。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class CoordinatorModule
extends AbstractConfigurationAwareModule
{
@Override
protected void setup(Binder binder)
{
install(new WebUiModule());

// coordinator announcement
discoveryBinder(binder).bindHttpAnnouncement("trino-coordinator");

// statement resource
jsonCodecBinder(binder).bindJsonCodec(TaskInfo.class);
jaxrsBinder(binder).bind(QueuedStatementResource.class);
jaxrsBinder(binder).bind(ExecutingStatementResource.class);
... ...
}
}
  • QueuedStatementResource提供的接口:
    • 提交查询
    • 获取排队查询状态
    • cancel查询
  • ExecutingStatementResource提供的接口:
    • 获取运行中的结果(轮询)
    • cancel查询
    • partialCancel,终止查询stage

CoordinatorModule中会绑定QueuedStatementResource和ExecutingStatementResource。而QueuedStatementResource就是处理我们上面说的接口的类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
//  io.trino.dispatcher.QueuedStatementResource
@ResourceSecurity(AUTHENTICATED_USER)
@POST
@Produces(APPLICATION_JSON)
public Response postStatement(
String statement,
@Context HttpServletRequest servletRequest,
@Context HttpHeaders httpHeaders,
@Context UriInfo uriInfo)
{
if (isNullOrEmpty(statement)) {
throw badRequest(BAD_REQUEST, "SQL statement is empty");
}

Query query = registerQuery(statement, servletRequest, httpHeaders);

return createQueryResultsResponse(query.getQueryResults(query.getLastToken(), uriInfo));
}
// 注册查询
private Query registerQuery(String statement, HttpServletRequest servletRequest, HttpHeaders httpHeaders)
{
//... ...
MultivaluedMap<String, String> headers = httpHeaders.getRequestHeaders();
// 创建查询Session
SessionContext sessionContext = sessionContextFactory.createSessionContext(headers, alternateHeaderName, remoteAddress, identity);
// 初始化Query
Query query = new Query(statement, sessionContext, dispatchManager, queryInfoUrlFactory);
queryManager.registerQuery(query);
// let authentication filter know that identity lifecycle has been handed off
servletRequest.setAttribute(AUTHENTICATED_IDENTITY, null);
return query;
}

此时,服务端已经生成了一个Query,且将Query放到了io.trino.dispatcher.queryManager中。在返回值QueryResult中会包含几个关键信息:

  1. queryId: 例如20230414_061323_00001_m4k5f
  2. infoUri: 例如http://localhost:8080/ui/query.html?20230414_061323_00001_m4k5f
  3. nextUri: 例如http://localhost:8080/v1/statement/queued/20230414_061323_00001_m4k5f/yb95760d187a727ebe067670fcfbdc1a98c8371fe/1
  4. state: 例如QUEUED

注意,此时返回后,查询会处于排队状态。然后客户端会对nextUri发起GET请求。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
//  io.trino.dispatcher.QueuedStatementResource
@ResourceSecurity(PUBLIC)
@GET
@Path("queued/{queryId}/{slug}/{token}")
@Produces(APPLICATION_JSON)
public void getStatus(
@PathParam("queryId") QueryId queryId,
@PathParam("slug") String slug,
@PathParam("token") long token,
@QueryParam("maxWait") Duration maxWait, // 查询最大等待时间
@Context UriInfo uriInfo,
@Suspended AsyncResponse asyncResponse)
{
// 从queryManager中获取Query信息
Query query = getQuery(queryId, slug, token);
// 获取query的状态
ListenableFuture<Response> future = getStatus(query, token, maxWait, uriInfo);
// 使用 DispatchExecutor中的Executor异步处理response
bindAsyncResponse(asyncResponse, future, responseExecutor);
}

private ListenableFuture<Response> getStatus(Query query, long token, Duration maxWait, UriInfo uriInfo)
{
long waitMillis = WAIT_ORDERING.min(MAX_WAIT_TIME, maxWait).toMillis();

return FluentFuture.from(query.waitForDispatched())
// wait for query to be dispatched, up to the wait timeout
.withTimeout(waitMillis, MILLISECONDS, timeoutExecutor)
.catching(TimeoutException.class, ignored -> null, directExecutor())
// when state changes, fetch the next result
.transform(ignored -> query.getQueryResults(token, uriInfo), responseExecutor)
.transform(this::createQueryResultsResponse, directExecutor());
}

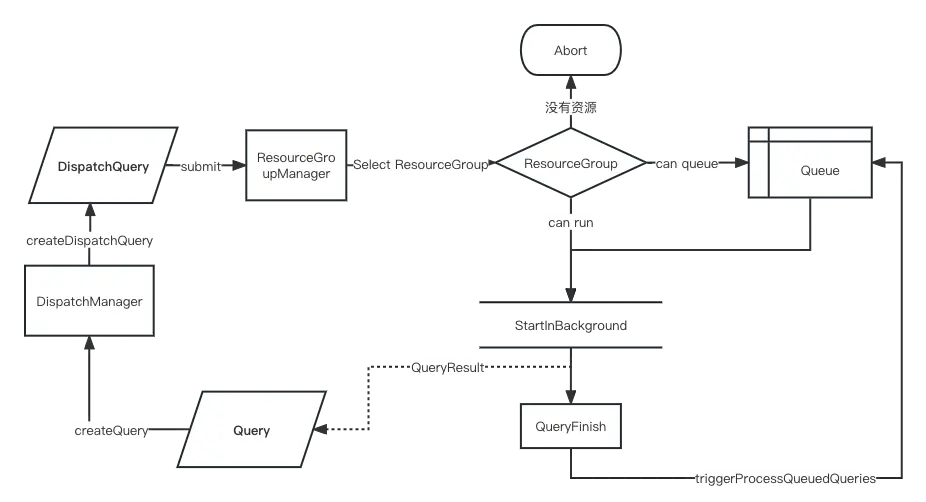

在 Query的waitForDispatched方法中。会触发Query的真正提交。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
//  io.trino.dispatcher.QueuedStatementResource.Query
private ListenableFuture<Void> waitForDispatched()
{
submitIfNeeded();
if (!creationFuture.isDone()) {
return nonCancellationPropagating(creationFuture);
}
// otherwise, wait for the query to finish
// submitIfNeeded 不成功下,会继续等待 Dispatch
return dispatchManager.waitForDispatched(queryId);
}

private void submitIfNeeded()
{
// submissionGate 是个flag 表示Query有没有被提交
if (submissionGate.compareAndSet(null, true)) {
// 如果没有被提交过,会设置为true。并执行dispatch
// 此时creationFuture is done
creationFuture.setFuture(dispatchManager.createQuery(queryId, slug, sessionContext, query));
}
}
// io.trino.dispatcher.DispatchManager
public ListenableFuture<Void> waitForDispatched(QueryId queryId)
{
return queryTracker.tryGetQuery(queryId)
.map(dispatchQuery -> {
dispatchQuery.recordHeartbeat(); // 此处记录了心跳
return dispatchQuery.getDispatchedFuture();
})
.orElseGet(Futures::immediateVoidFuture);
}

我们再回过头来看下getQueryResults方法:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
//  io.trino.dispatcher.QueuedStatementResource.Query
public QueryResults getQueryResults(long token, UriInfo uriInfo)
{
... ...
// if query submission has not finished, return simple empty result
if (!creationFuture.isDone()) {
return createQueryResults(
token + 1,uriInfo, DispatchInfo.queued(NO_DURATION, NO_DURATION));
}
DispatchInfo dispatchInfo = dispatchManager.getDispatchInfo(queryId)
// query should always be found, but it may have just been determined to be abandoned
.orElseThrow(() -> new WebApplicationException(Response
.status(NOT_FOUND)
.build()));
return createQueryResults(token + 1, uriInfo, dispatchInfo);
}
private QueryResults createQueryResults(long token, UriInfo uriInfo, DispatchInfo dispatchInfo)
{
URI nextUri = getNextUri(token, uriInfo, dispatchInfo); // 生成下次轮询的Uri
... ...
}

private URI getNextUri(long token, UriInfo uriInfo, DispatchInfo dispatchInfo)
{
// if failed, query is complete
if (dispatchInfo.getFailureInfo().isPresent()) {
return null;
}
// if dispatched, redirect to new uri
return dispatchInfo.getCoordinatorLocation()
.map(coordinatorLocation -> getRedirectUri(coordinatorLocation, uriInfo))
.orElseGet(() -> getQueuedUri(queryId, slug, token, uriInfo));
}
private URI getRedirectUri(CoordinatorLocation coordinatorLocation, UriInfo uriInfo)
{
URI coordinatorUri = coordinatorLocation.getUri(uriInfo);
return UriBuilder.fromUri(coordinatorUri)
.replacePath("/v1/statement/executing")
.path(queryId.toString())
.path(slug.makeSlug(EXECUTING_QUERY, 0))
.path("0")
.build();
}
private static URI getQueuedUri(QueryId queryId, Slug slug, long token, UriInfo uriInfo)
{
return uriInfo.getBaseUriBuilder()
.replacePath("/v1/statement/queued/")
.path(queryId.toString())
.path(slug.makeSlug(QUEUED_QUERY, token))
.path(String.valueOf(token))
.replaceQuery("")
.build();
}

此时我们可以发现一个Query是分为三种不同状态的: QUEUED,DISPATCHED和DISPATCH_FAILED

  1. 如果是QUEUED,返回的nextUri是/v1/statement/queued/
  2. 如果是DISPATCHED,返回的nextUri是/v1/statement/executing/
  3. 如果是DISPATCH_FAILED,不返回nextUri,表示查询完成

获取查询结果

当Query被提交后,轮询的地址会改为/v1/statement/executing/{queryId}/{slug}/{token}(ExecutingStatementResource)。ExecutingStatementResource使用asyncQueryResults方法获取最终结果。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
// io.trino.server.protocol.ExecutingStatementResource
private void asyncQueryResults(
Query query,
long token,
Duration maxWait,
DataSize targetResultSize,
UriInfo uriInfo,
AsyncResponse asyncResponse)
{
// 带超时时间等待结果
ListenableFuture<QueryResults> queryResultsFuture = query.waitForResults(token, uriInfo, wait, targetResultSize);
// 构建Response
ListenableFuture<Response> response = Futures.transform(queryResultsFuture, queryResults -> toResponse(query, queryResults), directExecutor());
// 构建异步Response
bindAsyncResponse(asyncResponse, response, responseExecutor);
}
// io.trino.server.protocol.Query
public synchronized ListenableFuture<QueryResults> waitForResults(long token, UriInfo uriInfo, Duration wait, DataSize targetResultSize)
{
// before waiting, check if this request has already been processed and cached
Optional<QueryResults> cachedResult = getCachedResult(token);
if (cachedResult.isPresent()) {
return immediateFuture(cachedResult.get());
}

// wait for a results data or query to finish, up to the wait timeout
ListenableFuture<Void> futureStateChange = addTimeout(
getFutureStateChange(),
() -> null,
wait,
timeoutExecutor);

// when state changes, fetch the next result
// 当QueryState变化,或者Query中的exchange client已经打开在等待数据
// 会触发getNextResult方法获取QueryResult
return Futures.transform(futureStateChange, ignored -> getNextResult(token, uriInfo, targetResultSize), resultsProcessorExecutor);
}

private synchronized QueryResults getNextResult(long token, UriInfo uriInfo, DataSize targetResultSize)
{
... ...
// 终结状态关闭 Exchange client
closeExchangeIfNecessary(queryInfo);

// fetch result data from exchange
QueryResultRows resultRows = removePagesFromExchange(queryInfo, targetResultSize.toBytes());
... ...

// advance next token only return a next url if
// (1) the query is not done AND the query state is not FAILED
// OR
// (2) there is more data to send (due to buffering)
// OR
// (3) cached query result needs client acknowledgement to discard
if (queryInfo.getState() != FAILED && (!queryInfo.isFinalQueryInfo() || !exchangeDataSource.isFinished() || (queryInfo.getOutputStage().isPresent() && !resultRows.isEmpty()))) {
// 增加Token 下次继续轮询
nextToken = OptionalLong.of(token + 1);
}
else {
nextToken = OptionalLong.empty();
// the client is not coming back, make sure the exchange is closed
exchangeDataSource.close();
}

URI nextResultsUri = null;
URI partialCancelUri = null;
if (nextToken.isPresent()) {
// 有nextToken的情况下,更新nextResultsUri
long nextToken = this.nextToken.getAsLong();
nextResultsUri = createNextResultsUri(uriInfo, nextToken);
// 终止某个stage的url
// /v1/statement/executing/partialCancel/{queryId}/{stage}/{slug}/{token}
partialCancelUri = findCancelableLeafStage(queryInfo)
.map(stage -> createPartialCancelUri(stage, uriInfo, nextToken))
.orElse(null);
}
... ...

// 构建QueryResults
QueryResults queryResults = new QueryResults(
queryId.toString(),
getQueryInfoUri(queryInfoUrl, queryId, uriInfo),
partialCancelUri,
nextResultsUri,
resultRows.getColumns().orElse(null),
resultRows.isEmpty() ? null : resultRows, // client excepts null that indicates "no data"
toStatementStats(queryInfo),
toQueryError(queryInfo, typeSerializationException),
mappedCopy(queryInfo.getWarnings(), ProtocolUtil::toClientWarning),
queryInfo.getUpdateType(),
updateCount);
... ...

return queryResults;
}
// 这是从Exchange中获取数据的方法
private synchronized QueryResultRows removePagesFromExchange(QueryInfo queryInfo, long targetResultBytes)
{
if (!resultsConsumed && queryInfo.getOutputStage().isEmpty()) {
return queryResultRowsBuilder(session)
.withColumnsAndTypes(ImmutableList.of(), ImmutableList.of())
.build();
}
// 尽可能的获取更多的page(不超过DESIRED_RESULT_BYTES)
// 因为当Page被remove掉的时候,query状态会切换为Finished。
// 所以此处在创建QueryResultRows时需要获取锁
// 用来防止其他线程观察到状态变化, 从而导致最后的page丢失
QueryResultRows.Builder resultBuilder = queryResultRowsBuilder(session)
// Intercept serialization exceptions and fail query if it's still possible.
// Put serialization exception aside to return failed query result.
.withExceptionConsumer(this::handleSerializationException)
.withColumnsAndTypes(columns, types);

try {
long bytes = 0;
while (bytes < targetResultBytes) {
// 循环拉取数据
Slice serializedPage = exchangeDataSource.pollPage();
if (serializedPage == null) {
break;
}

Page page = serde.deserialize(serializedPage);
bytes += page.getLogicalSizeInBytes();
resultBuilder.addPage(page);
}
if (exchangeDataSource.isFinished()) {
exchangeDataSource.close();
}
}
catch (Throwable cause) {
queryManager.failQuery(queryId, cause);
}
return resultBuilder.build();
}

交互流程

查询接口层交互流程

flowchart TD
  subgraph client
    c1(初始化查询请求)
    c2(解析server返回值)-->c3{是否存在nextUri}
    c3-->|不存在|c4(结束查询)
  end
  subgraph server
    s1(/v1/statemenet)-->|1.生成Query|s12(Query)
    s1-->|2.构建返回Result|s2(QueryResult)
    s3(NextUri接口)
    s3-->s30{是否DISPATCHED}
    s30-->|排队中|s31(/v1/statement/queued)
    s30-->|DISPATCHED|s32(/v1/statement/executing)
    s31-.->|记录客户端心跳|s12
    s32-.->|记录客户端心跳|s12
    s31-->|返回QueryResult|s2
    s32-->|返回QueryResult|s2
    s4(schedule Task)-.->|定时检查Query心跳,将心跳超时Query标记为Fail|s12
  end
  c1-->|POST /v1/statemenet|s1
  s2-->|返回QueryResult|c2
  c3-->|存在|s3
  linkStyle 2 stroke:#eb4f34
  linkStyle 3 stroke:#eb4f34
  linkStyle 5 stroke:#64eb34
  linkStyle 7 stroke:#64eb34
  linkStyle 9 stroke:#64eb34
  linkStyle 6 stroke:#34ebcc
  linkStyle 8 stroke:#34ebcc
  linkStyle 10 stroke:#34ebcc

提交DispatchQuery

DispatchManager

下面来关注下DispatchManager的CreateQuery:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
// io.trino.dispatcher.DispatchManager
public ListenableFuture<Void> createQuery(QueryId queryId, Slug slug, SessionContext sessionContext, String query)
{
requireNonNull(queryId, "queryId is null");
requireNonNull(sessionContext, "sessionContext is null");
requireNonNull(query, "query is null");
checkArgument(!query.isEmpty(), "query must not be empty string");
checkArgument(queryTracker.tryGetQuery(queryId).isEmpty(), "query %s already exists", queryId);

// It is important to return a future implementation which ignores cancellation request.
// Using NonCancellationPropagatingFuture is not enough; it does not propagate cancel to wrapped future
// but it would still return true on call to isCancelled() after cancel() is called on it.
DispatchQueryCreationFuture queryCreationFuture = new DispatchQueryCreationFuture();
dispatchExecutor.execute(() -> {
try {
// 提交查询
createQueryInternal(queryId, slug, sessionContext, query, resourceGroupManager);
}
finally {
queryCreationFuture.set(null);
}
});
return queryCreationFuture;
}
/**
* Creates and registers a dispatch query with the query tracker. This method will never fail to register a query with the query
* tracker. If an error occurs while creating a dispatch query, a failed dispatch will be created and registered.
*/
private <C> void createQueryInternal(QueryId queryId, Slug slug, SessionContext sessionContext, String query, ResourceGroupManager<C> resourceGroupManager)
{
Session session = null;
PreparedQuery preparedQuery = null;
try {
... ...
// decode session
session = sessionSupplier.createSession(queryId, sessionContext);

// check query execute permissions
accessControl.checkCanExecuteQuery(sessionContext.getIdentity());

// prepare query
// 使用Parser将Query解析成Statement语法节点,并对于Execute类型的节点做验证
preparedQuery = queryPreparer.prepareQuery(session, query);

// select resource group
Optional<String> queryType = getQueryType(preparedQuery.getStatement()).map(Enum::name);
// 选择一个资源组用于执行Query,根据配置的group和selector进行match
SelectionContext<C> selectionContext = resourceGroupManager.selectGroup(new SelectionCriteria(
sessionContext.getIdentity().getPrincipal().isPresent(),
sessionContext.getIdentity().getUser(),
sessionContext.getIdentity().getGroups(),
sessionContext.getSource(),
sessionContext.getClientTags(),
sessionContext.getResourceEstimates(),
queryType));

// apply system default session properties (does not override user set properties)
session = sessionPropertyDefaults.newSessionWithDefaultProperties(session, queryType, selectionContext.getResourceGroupId());
// 构造 LocalDispatchQuery
DispatchQuery dispatchQuery = dispatchQueryFactory.createDispatchQuery(
session,
sessionContext.getTransactionId(),
query,
preparedQuery,
slug,
selectionContext.getResourceGroupId());
// queryTracker中记录下查询的query
boolean queryAdded = queryCreated(dispatchQuery);
if (queryAdded && !dispatchQuery.isDone()) {
try {
// 此处使用resourceGroupManager提交查询
resourceGroupManager.submit(dispatchQuery, selectionContext, dispatchExecutor);
}
catch (Throwable e) {
// dispatch query has already been registered, so just fail it directly
dispatchQuery.fail(e);
}
}
}
catch (Throwable throwable) {
// creation must never fail, so register a failed query in this case
if (session == null) {
session = Session.builder(sessionPropertyManager)
.setQueryId(queryId)
.setIdentity(sessionContext.getIdentity())
.setSource(sessionContext.getSource().orElse(null))
.build();
}
Optional<String> preparedSql = Optional.ofNullable(preparedQuery).flatMap(PreparedQuery::getPrepareSql);
DispatchQuery failedDispatchQuery = failedDispatchQueryFactory.createFailedDispatchQuery(session, query, preparedSql, Optional.empty(), throwable);
queryCreated(failedDispatchQuery);
}
}

createDispatchQuery方法中构造了QueryStateMachine,queryMonitor和queryExecutionFuture

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
public DispatchQuery createDispatchQuery(
Session session,
Optional<TransactionId> existingTransactionId,
String query,
PreparedQuery preparedQuery,
Slug slug,
ResourceGroupId resourceGroup)
{
WarningCollector warningCollector = warningCollectorFactory.create();
// 此时状态机状态为QUEUED
QueryStateMachine stateMachine = QueryStateMachine.begin(... ...);

// It is important that `queryCreatedEvent` is called here. Moving it past the `executor.submit` below
// can result in delivering query-created event after query analysis has already started.
// That can result in misbehaviour of plugins called during analysis phase (e.g. access control auditing)
// which depend on the contract that event was already delivered.
//
// Note that for immediate and in-order delivery of query events we depend on synchronous nature of
// QueryMonitor and EventListenerManager.
queryMonitor.queryCreatedEvent(stateMachine.getBasicQueryInfo(Optional.empty()));
// Query执行future
ListenableFuture<QueryExecution> queryExecutionFuture = executor.submit(() -> {
QueryExecutionFactory<?> queryExecutionFactory = executionFactories.get(preparedQuery.getStatement().getClass());
// 根据不同的语句获取不同的工厂
if (queryExecutionFactory == null) {
throw new TrinoException(NOT_SUPPORTED, "Unsupported statement type: " + preparedQuery.getStatement().getClass().getSimpleName());
}

try {
return queryExecutionFactory.createQueryExecution(preparedQuery, stateMachine, slug, warningCollector);
}
catch (Throwable e) {
if (e instanceof Error) {
if (e instanceof StackOverflowError) {
log.error(e, "Unhandled StackOverFlowError; should be handled earlier; to investigate full stacktrace you may need to enable -XX:MaxJavaStackTraceDepth=0 JVM flag");
}
else {
log.error(e, "Unhandled Error");
}
// wrapping as RuntimeException to guard us from problem that code downstream which investigates queryExecutionFuture may not necessarily handle
// Error subclass of Throwable well.
RuntimeException wrappedError = new RuntimeException(e);
stateMachine.transitionToFailed(wrappedError);
throw wrappedError;
}
stateMachine.transitionToFailed(e);
throw e;
}
});

return new LocalDispatchQuery(
stateMachine,
queryExecutionFuture,
queryMonitor,
clusterSizeMonitor,
executor,
queryManager::createQuery // QueryExecution的消费者,内部调用queryExecution.start();
);
}

QueryTracker

上面代码中创建Query时会将Query加入到QueryTracker。我们来看下QueryTracker有什么作用。QueryTracker中会存储dispatched的Query(存储在queries中)和expired的Query(存储在expirationQueue中):

1
2
private final ConcurrentMap<QueryId, T> queries = new ConcurrentHashMap<>();
private final Queue<T> expirationQueue = new LinkedBlockingQueue<>();

当dispatchManager执行生命周期start方法时,会调用QueryTracker的Start方法:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public synchronized void start(){
checkState(backgroundTask == null, "QueryTracker already started");
backgroundTask = queryManagementExecutor.scheduleWithFixedDelay(() -> {
try {
failAbandonedQueries(); // 客户端心跳超时就认为是Abandoned,将Query设置为Fail
}
catch (Throwable e) {
log.error(e, "Error cancelling abandoned queries");
}

try {
enforceTimeLimits(); //将所有执行超时的Query设置为Fail
}
catch (Throwable e) {
log.error(e, "Error enforcing query timeout limits");
}

try {
removeExpiredQueries(); // 当完成的Query存放条数超过上限且,Query完成时间达到阈值,删除历史数据
}
catch (Throwable e) {
log.error(e, "Error removing expired queries");
}

try {
pruneExpiredQueries(); // 减少ExpiredQueries的存储信息
}
catch (Throwable e) {
log.error(e, "Error pruning expired queries");
}
}, 1, 1, TimeUnit.SECONDS); // 1秒执行一次
}

ResourceGroup

DispatchQuery的提交是通过ResourceGroupManager的submit方法进行的。

1
2
3
4
5
6
7
8
9
10
// io.trino.execution.resourcegroups.InternalResourceGroupManager
@Override
public void submit(ManagedQueryExecution queryExecution, SelectionContext<C> selectionContext, Executor executor)
{
checkState(configurationManager.get() != null, "configurationManager not set");
// InternalResourceGroupManager 会缓存ResourceGroup,如果groupId不存在,此处会创建一个新的
createGroupIfNecessary(selectionContext, executor);
// 使用ResourceGroup的run方法执行查询
groups.get(selectionContext.getResourceGroupId()).run(queryExecution);
}

在ResourceGroup的run方法中会先判断当前查询能不能直接查询或者入队。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
public void run(ManagedQueryExecution query)
{
// 这里的root是每个group树的根节点
synchronized (root) {
if (!subGroups.isEmpty()) {
throw new TrinoException(INVALID_RESOURCE_GROUP, format("Cannot add queries to %s. It is not a leaf group.", id));
}
// Check all ancestors for capacity
InternalResourceGroup group = this;
boolean canQueue = true;
boolean canRun = true;
while (true) {
// 检查是否运行和排队,从子group一路上溯检查
canQueue = canQueue && group.canQueueMore(); // 检测自己和后代排查长度
canRun = canRun && group.canRunMore();// 检测自己和后代运行队列长度,cpu和memory使用
if (group.parent.isEmpty()) {
break;
}
group = group.parent.get();
}
if (!canQueue && !canRun) {
query.fail(new QueryQueueFullException(id));
return;
}
if (canRun) {
startInBackground(query); // 如果资源满足就后台运行
}
else {
enqueueQuery(query); // 可以排队,就入队
}
query.addStateChangeListener(state -> {
if (state.isDone()) {
queryFinished(query); //触发finish回调,注意这个方法
}
});
}
}

当资源满足时,通过StartInBackground方法运行:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
private void startInBackground(ManagedQueryExecution query)
{
// 锁重入检测
checkState(Thread.holdsLock(root), "Must hold lock to start a query");
synchronized (root) {
// 将查询放入 runningQueries Map中,初始化资源cpu和memory使用
runningQueries.put(query, new ResourceUsage(0, 0));
InternalResourceGroup group = this;
while (group.parent.isPresent()) {
group.parent.get().descendantRunningQueries++; // 增加父group的后代运行查询数
group.parent.get().dirtySubGroups.add(group); // 将group加到有sql运行的dirtySubGroups
group = group.parent.get();
}
updateEligibility(); // 更新队列和上游节点的资格
executor.execute(query::startWaitingForResources); // 异步执行查询,query状态改为等待资源
}
}

当资源不够,但是排队长度还够的情况下,查询会进入资源组的排队队列:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
private void enqueueQuery(ManagedQueryExecution query)
{
checkState(Thread.holdsLock(root), "Must hold lock to enqueue a query");
synchronized (root) {
// 将查询放入优先级队列排队
queuedQueries.addOrUpdate(query, getQueryPriority(query.getSession()));
InternalResourceGroup group = this;
while (group.parent.isPresent()) {
group.parent.get().descendantQueuedQueries++; // 增加父group的后代排队查询数
group = group.parent.get();
}
updateEligibility();// 更新队列和上游节点的资格
}
}

那么什么时候开始执行排队的查询呢?在QueryFinish()方法中最后会执行root.triggerProcessQueuedQueries();

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public void triggerProcessQueuedQueries()
{
updateGroupsAndProcessQueuedQueries();
}
public void updateGroupsAndProcessQueuedQueries()
{
synchronized (root) {
updateResourceUsageAndGetDelta();

while (internalStartNext()) {
// start all the queries we can
}
}
}

在internalStartNext方法中会尽量启动能执行的查询。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
protected boolean internalStartNext()
{
checkState(Thread.holdsLock(root), "Must hold lock to find next query");
synchronized (root) {
if (!canRunMore()) {
return false;
}
ManagedQueryExecution query = queuedQueries.poll();
if (query != null) {
startInBackground(query); // 启动查询
return true;
}

// Remove even if the sub group still has queued queries, so that it goes to the back of the queue
InternalResourceGroup subGroup = eligibleSubGroups.poll();
if (subGroup == null) {
return false;
}
boolean started = subGroup.internalStartNext(); // 启动子group的query
checkState(started, "Eligible sub group had no queries to run");

long currentTime = System.currentTimeMillis();
if (lastStartMillis != 0) {
timeBetweenStartsSec.update(Math.max(0, (currentTime - lastStartMillis) / 1000));
}
lastStartMillis = currentTime;

descendantQueuedQueries--;
// Don't call updateEligibility here, as we're in a recursive call, and don't want to repeatedly update our ancestors.
if (subGroup.isEligibleToStartNext()) { // 如果subGroup还能继续运行Query,再次加入到eligibleSubGroups
addOrUpdateSubGroup(subGroup);
}
return true;
}
}

LocalDispatchQuery

从上面InternalResourceGroup.startInBackground()方法代码可知,在资源组提交DispatchQuery后,会在后台线程中调用LocalDispatchQuery.startWaitingForResources()方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
// io.trino.dispatcher.LocalDispatchQuery
// startWaitingForResources => waitForMinimumWorkers =>startExecution
@Override
public void startWaitingForResources()
{
// 查询状态机切换到 WAITING_FOR_RESOURCES
if (stateMachine.transitionToWaitingForResources()) {
waitForMinimumWorkers();
}
}

private void waitForMinimumWorkers()
{
// wait for query execution to finish construction
// 当queryExecution创建成功后触发回调
addSuccessCallback(queryExecutionFuture, queryExecution -> {
Session session = stateMachine.getSession();
int executionMinCount = 1; // always wait for 1 node to be up
if (queryExecution.shouldWaitForMinWorkers()) {
executionMinCount = getRequiredWorkers(session);
}
ListenableFuture<Void> minimumWorkerFuture = clusterSizeMonitor.waitForMinimumWorkers(executionMinCount, getRequiredWorkersMaxWait(session));
// when worker requirement is met, start the execution
addSuccessCallback(minimumWorkerFuture, () -> startExecution(queryExecution));
addExceptionCallback(minimumWorkerFuture, throwable -> queryExecutor.execute(() -> stateMachine.transitionToFailed(throwable)));

// cancel minimumWorkerFuture if query fails for some reason or is cancelled by user
stateMachine.addStateChangeListener(state -> {
if (state.isDone()) {
minimumWorkerFuture.cancel(true);
}
});
});
}
// 开始执行查询
private void startExecution(QueryExecution queryExecution)
{
queryExecutor.execute(() -> {
// 改变状态为DISPATCHING
if (stateMachine.transitionToDispatching()) {
try {
querySubmitter.accept(queryExecution);
// querySubmitter -> queryManager::createQuery -> queryExecution.start
if (notificationSentOrGuaranteed.compareAndSet(false, true)) {
queryExecution.addFinalQueryInfoListener(queryMonitor::queryCompletedEvent);
}
}
catch (Throwable t) {
// this should never happen but be safe
stateMachine.transitionToFailed(t);
log.error(t, "query submitter threw exception");
throw t;
}
finally {
submitted.set(null); // SettableFuture,通知状态变更
}
}
});
}

querySubmitter实质上是queryManager::createQuery

QueryExecution

queryManager::createQuery中调用了queryExecution.start(). queryExecution表示一次SQL查询执行,用于启动,停止,管理查询和统计查询相关信心。在queryExecution.start()后,查询开始执行,执行相关源码分析将在后面的文章中进行分析。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
// io.trino.execution.SqlQueryManager
@Override
public void createQuery(QueryExecution queryExecution)
{
requireNonNull(queryExecution, "queryExecution is null");

if (!queryTracker.addQuery(queryExecution)) {
throw new TrinoException(GENERIC_INTERNAL_ERROR, format("Query %s already registered", queryExecution.getQueryId()));
}

queryExecution.addFinalQueryInfoListener(finalQueryInfo -> {
// execution MUST be added to the expiration queue or there will be a leak
queryTracker.expireQuery(queryExecution.getQueryId());
});

queryExecution.start(); // 执行查询
}

QueryExecution的创建是通过queryExecutionFactory.createQueryExecution方法实现的。在QueryExecutionFactoryModule中定义了不同Statement子类所对应的QueryExecutionFactory:

  • DataDefinitionExecutionFactory: DDL命令对应的Factory
  • SqlQueryExecutionFactory: 其他命令的Factory

Statement子类命令存储在io.trino.util.StatementUtils#STATEMENT_QUERY_TYPES中。
